A UI style guide, built by hand

One of my early design systems, made before AI tools: a single guide that fixed the type, colour and components of a web product so every screen could be built the same way.

Cover for the UI style guide: a large Aa beside a panel with a nine-step blue scale, primary and outline buttons, a search field and four alert colours, on a dark blue background
Project
UI style guide, version 1
Product
askchamber
Scope
Typography, colour, buttons, links, forms and navigation

Overview

One page per decision.

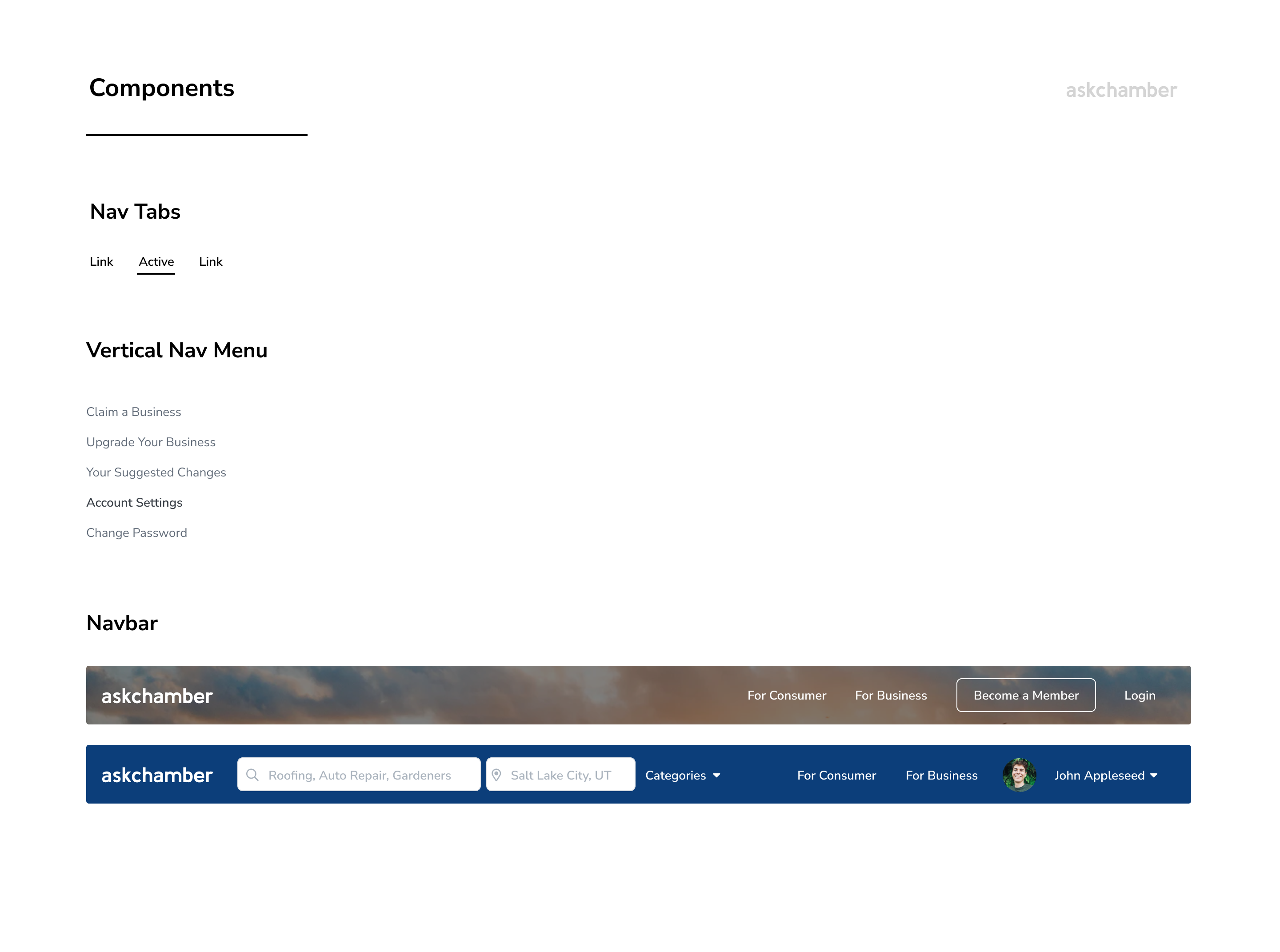

The guide is a short document in Figma. A cover and table of contents lead into four pages: typography, colour, form components and navigation. Each page shows the rule next to a live example, so a designer or developer can check a value without asking.

Everything is set up in Figma, using its components and styles, so the guide and the designs it describes share the same building blocks. I made it before AI tools were part of my work, so every choice here was made and documented by hand.

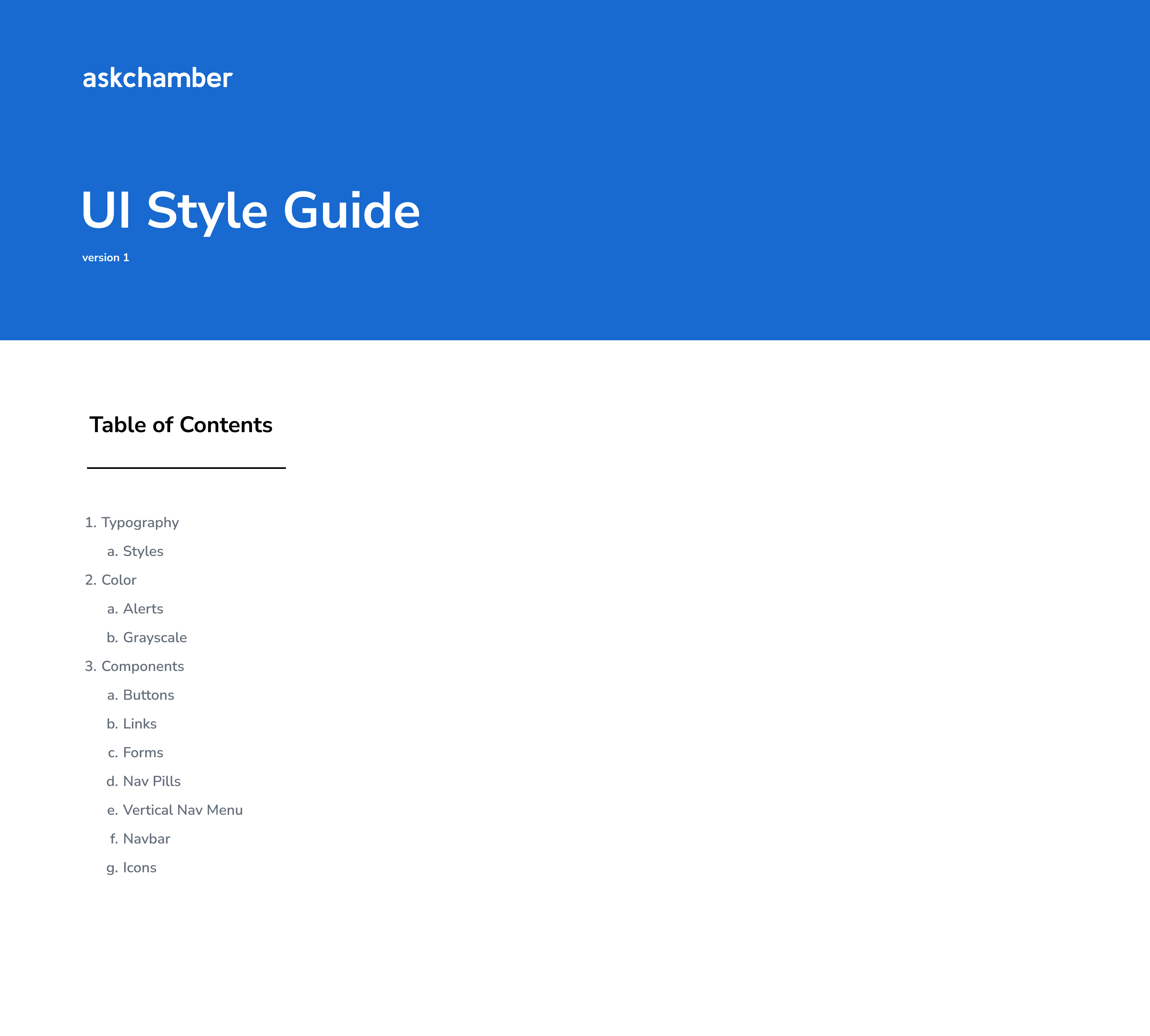

The style guide cover with the product name and the title UI Style Guide, version 1, above a table of contents covering typography, color and components
The cover and table of contents

Typography

One typeface, eight sizes.

The product uses Nunito Sans in four weights: regular, semibold, bold and extra bold. Six heading levels run from 40px down to 16px, followed by a 14px paragraph and a 12px small paragraph.

Each size sits beside the same sample sentence, so the step between levels is easy to see.

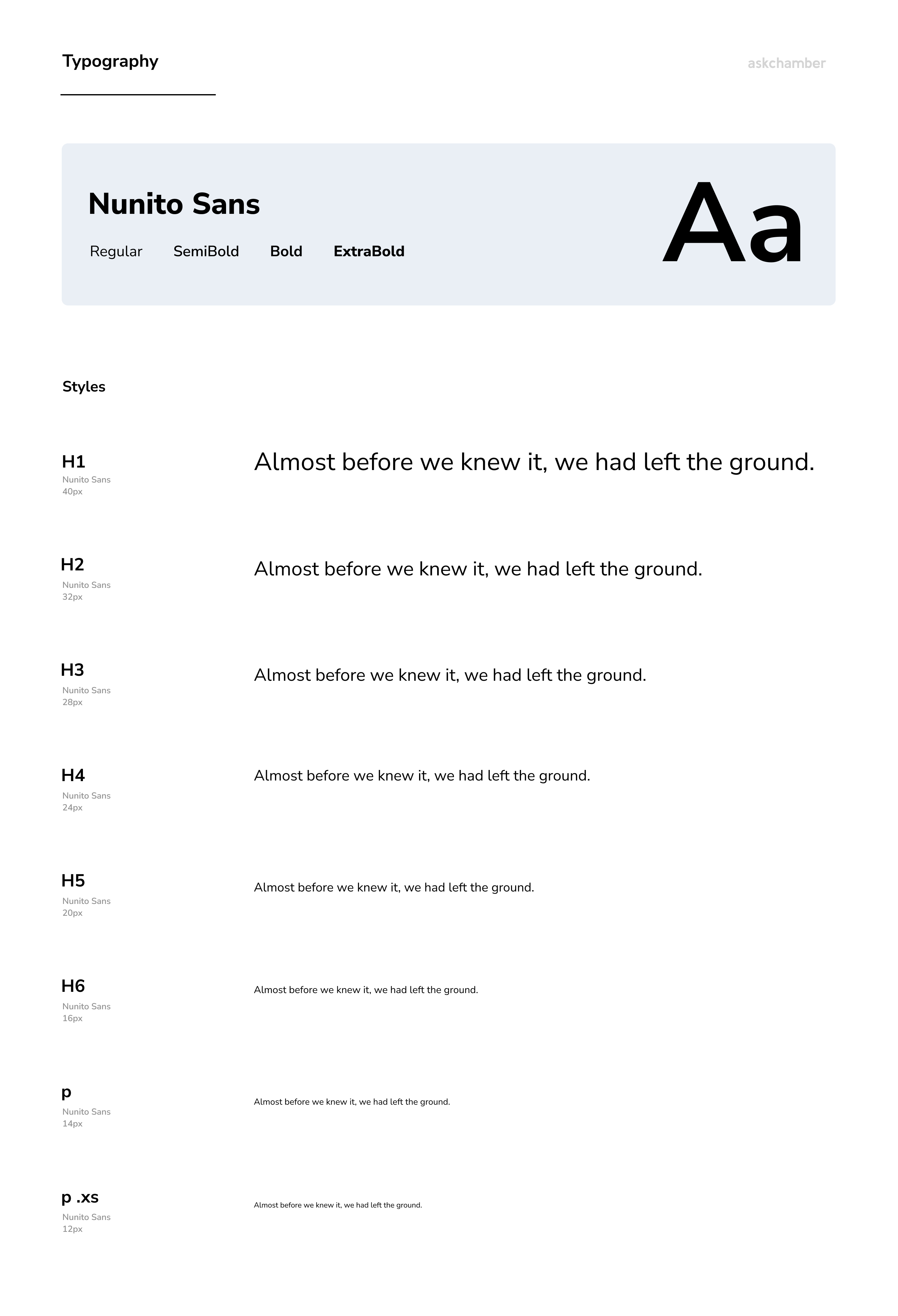

Type specimen for Nunito Sans in four weights, with heading styles H1 to H6 and two paragraph sizes shown at 40, 32, 28, 24, 20, 16, 14 and 12 pixels
Nunito Sans: weights and the full type scale

Color

One blue, plus the signals.

A single primary blue carries the brand and every main action. It comes with a nine-step scale from a light tint to a deep navy, so hover states, backgrounds and dark bars all come from the same hue.

Success, danger, warning and info each have one colour, and a nine-step grayscale covers text, borders and surfaces. Every swatch shows its hex value.

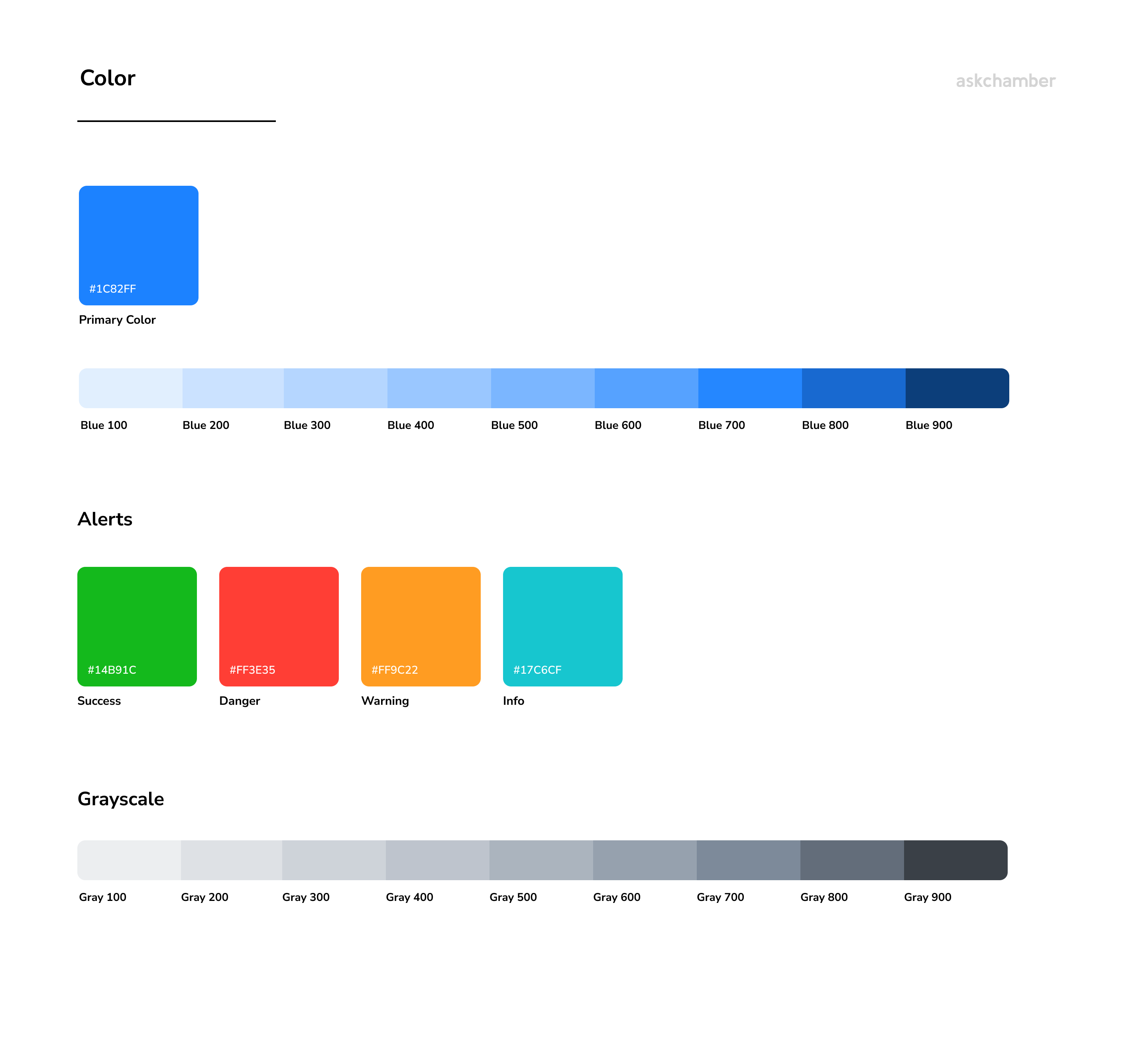

Colour page: the primary blue with its hex value, a nine-step blue scale, four alert colours for success, danger, warning and info, and a nine-step grayscale
Primary blue, alert colours and grayscale

Components

Three sizes, every state.

Buttons and form fields share three heights: 48px, 38px and 31px. Buttons come as solid and outline. Fields come plain, with an attached button, and with a search icon.

Fields also show their active, error and success states, with the error message written out. A sample form puts the pieces together.

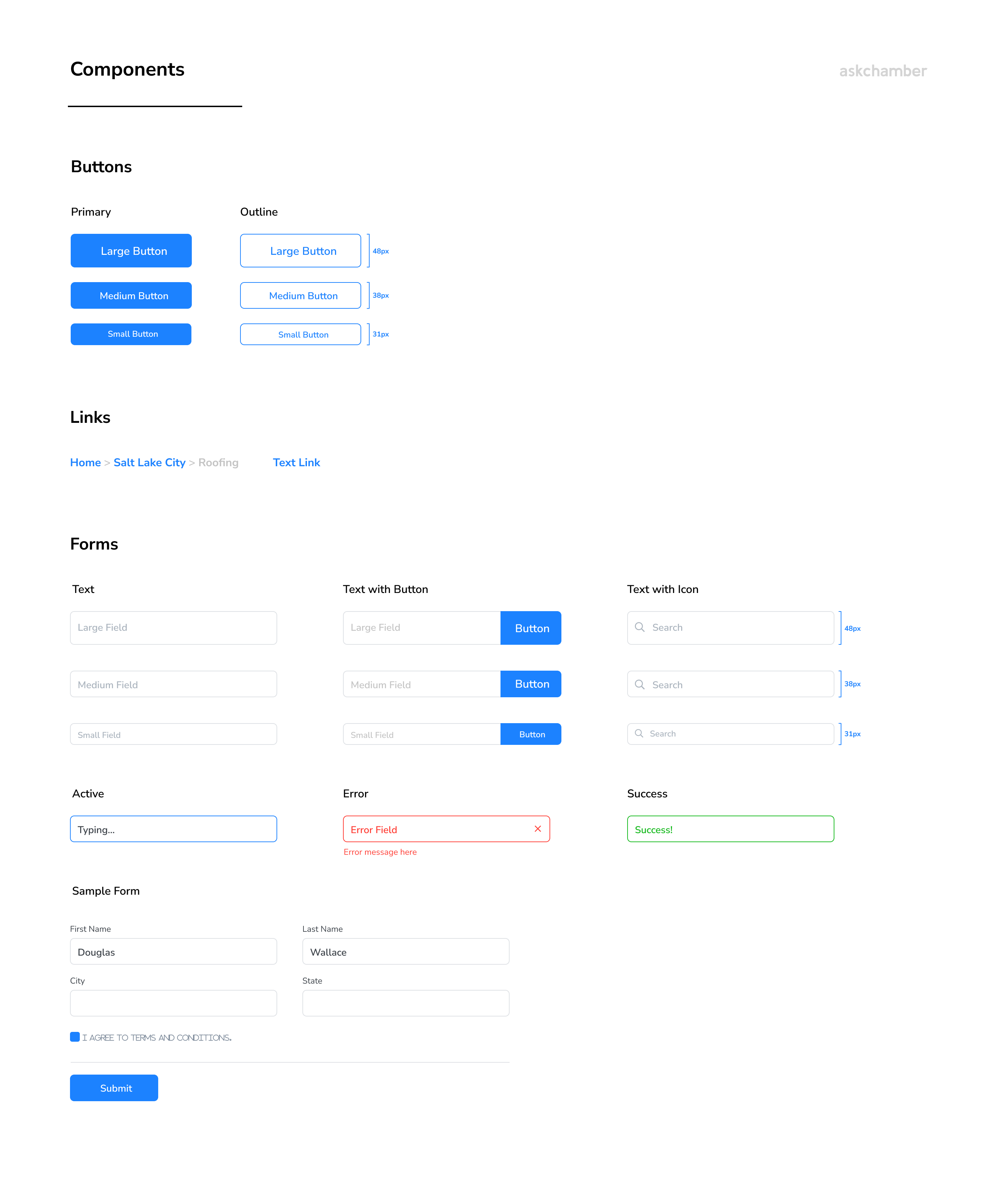

Components page: primary and outline buttons in three sizes, breadcrumb and text links, text fields in three sizes with button and icon variants, active, error and success fields, and a sample form
Buttons, links and forms, with sizes called out
